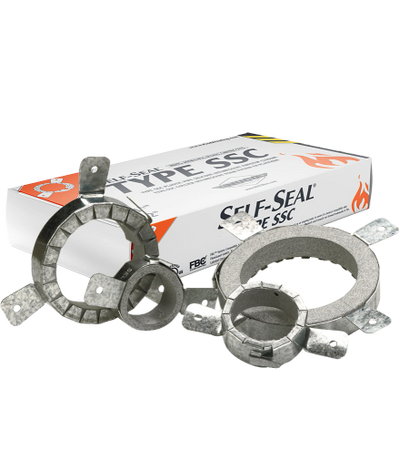

Self-Seal Type-SSC Intumescent Silicone Firestop Collar
Features and typical uses:
- 100% intumescent silicone
- Prefabricated
- Protects your floor & wall openings
- Low profile for hard to fit angles
- Expands to close penetrations
- Tested at positive pressure to simulate the pressure differentials that can occur in a fire situation
Self-Seal Type-SSC seals combustible service penetrations in fire and smoke rated wall or floor separations.
Basic uses include firestopping:
- Solid or cellular core PVC
- Solid or cellular core ABS
- IPEX XFR® 15-50
- CPVC
- IPEX Aquarise®
- FRPP
- Closed or vented pipe penetrations
- Solid core PVC
- IPEX XFR® 50-5 PVC vented
- CPVC sprinkler systems
- PEX
Typical properties:
These values are not intended for use in preparing specifications. Spec Writers; please contact NUCO
Inc. before writing specifications if any further information is required.
Description Specification
Specific gravity: 1.26 - 1.29
Free expansion volume (heated): >9 times original volume at 350°C (662° F)
Service temperature range: -10° - 110°C , (-14° - 230° F)
ASTM E-84 - Surface burning characteristics: FSI = 0 SD = 27
